Klimaanlage im Überblick: Arten, Energieeffizienz und Tipps für die richtige Wahl

How Air Conditioning Works: Components, Refrigerants, and Efficiency Metrics

At its heart, air conditioning is an elegant heat transfer process. Instead of “creating cold,” a system moves heat from indoors to outdoors using a refrigerant that cycles through four main components: compressor, condenser, expansion device, and evaporator. Indoors, liquid refrigerant evaporates at low pressure, absorbing heat from the room air as it boils; outdoors, the compressor raises the vapor’s pressure and temperature so it can reject that heat through the condenser coil. The cycle repeats, steadily shifting heat out of the living space. Along the way, moisture in warm air condenses on the cool indoor coil and drains away, reducing humidity—a key reason air conditioning often feels more comfortable than a fan alone.

Two design choices significantly influence performance. First, controls: traditional fixed-speed systems switch on and off to meet demand, whereas inverter-driven compressors vary speed continuously. By closely matching output to the room load, inverter systems cut wasted energy from frequent starts, often improving seasonal efficiency and comfort stability. Second, heat exchangers: larger, well-finned coils and efficient indoor blowers promote heat transfer at lower fan speeds, which also reduces noise.

Refrigerants matter for efficiency and environmental impact. Common modern choices include low–ozone-depletion, lower–global-warming-potential blends. While refrigerant handling is a job for certified technicians, homeowners can still prioritize units that use lower-impact refrigerants and are designed to minimize leakage. Good installation practices—proper vacuuming of linesets, accurate refrigerant charge, and leak testing—help keep performance on-spec for years.

Understanding efficiency metrics helps compare models fairly. Three appear most often: EER (Energy Efficiency Ratio) for steady-state cooling at a specific condition, SEER (Seasonal Energy Efficiency Ratio) for average cooling performance across a range of conditions, and COP/SCOP (Coefficient of Performance/Seasonal COP) describing how many units of cooling or heating are delivered per unit of electricity consumed. As a rough guide, modern inverter split systems often report SEER values around 5–8 and SCOP around 4–5, though actual results depend on climate, usage, and installation. For practical budgeting, a 2.5 kW (≈8,500 BTU/h) cooling unit operating at SEER 6 might draw roughly 0.4–0.5 kW at typical loads; running four hours on a warm evening could consume around 1.6–2.0 kWh. Multiply by your local electricity rate to estimate operating cost. The takeaway: choose a system that balances high seasonal efficiency with components sized and installed for your specific space.

Types of Air Conditioners: From Portable Units to Ducted and Variable Systems

Different living spaces and usage patterns benefit from different air conditioning architectures. Portable and monoblock window units group the compressor and evaporator close together; they can be an accessible first step for renters or short-term needs. However, because hot condenser air must be expelled through a hose or the unit body itself, they often create slight negative pressure that draws warm air from adjacent spaces, reducing net efficiency. Typical sound levels can also be higher because the compressor sits indoors.

Split systems separate noisy, heat-rejecting components outside and the quiet air handler inside. A single split cools one primary room; multi-splits connect multiple indoor units to a single outdoor unit, allowing separate temperature control per zone. For many households, a compact wall-mounted split is one of the top options due to its balance of efficiency, quiet operation, and flexibility in placement. Indoor styles range from wall and floor consoles to low-profile ceiling cassettes, all aiming to distribute air evenly and unobtrusively.

Ducted systems hide the indoor unit in a ceiling void or utility area and distribute conditioned air through ducts and diffusers. They create a clean aesthetic and can serve multiple rooms with a uniform look. But ducts require space and careful design to avoid pressure losses, noise, and energy waste due to poor insulation. In residential retrofits with limited ceiling depth, slim-duct units that serve one or two nearby rooms can be a well-regarded compromise.

For larger buildings or complex zoning, variable refrigerant systems modulate capacity across many indoor units with sophisticated controls. These deliver steady conditions, precise zoning, and seasonal efficiency when engineered and commissioned by professionals. They are renowned in light commercial applications and upscale residences with many zones.

Typical matchups, with concise pros and trade-offs:

– Portable/Window: quick to deploy; higher noise; lower seasonal efficiency; suitable for temporary needs.
– Single Split: highly rated efficiency; quiet; serves one zone; straightforward maintenance.
– Multi-Split: multiple rooms; individual control; requires careful piping lengths and capacity matching.
– Ducted: hidden aesthetics; even distribution; needs space and well-insulated ducts; higher install complexity.
– Variable Refrigerant: outstanding zoning and modulation; professional design and commissioning essential; higher upfront cost.

Choosing among these starts with your constraints: Are you renting? Do you have facade limitations? Is noise a paramount concern? How many zones do you need now—and later? The right choice is the one that solves today’s comfort needs while aligning with long-term plans for the space.

Energy Efficiency and Sustainability: Labels, Smart Operation, and Long-Term Impact

Energy performance is a journey, not just a label. In the EU, the energy label for air conditioners was re-scaled to an A–G range to reflect modern technologies and encourage differentiation at the top end. While labels are a helpful snapshot, seasonal metrics (SEER for cooling and SCOP for heating, where applicable) tell a richer story about performance across real weather patterns. In warmer climates, prioritize robust SEER; in mixed climates where shoulder-season heating is useful, a stronger SCOP can meaningfully cut overall energy use.

Inverter technology is central to seasonal efficiency, but the system around the unit matters just as much. Reducing gains and losses in the building envelope is often the lowest-cost “efficiency upgrade.” Consider a simple hierarchy:

– Shade and reflect: external shading, reflective blinds, and shading of west-facing windows to curb solar heat gains.
– Tighten and insulate: seal obvious air leaks; insulate attics and roof decks where feasible.
– Ventilate smartly: purge heat overnight when outdoor temperatures drop, especially in dry climates; close windows during peak heat.
– Right-size the unit: oversizing leads to short cycles, under-dehumidification, and lower comfort; undersizing runs loudly at maximum with limited effect.

Smart operation matters daily. Many modern controllers offer schedules, eco modes, and fine fan-speed control. A modest change—raising the cooling setpoint from 22°C to 24–25°C, or using a “dry” mode on humid days—can cut consumption perceptibly while maintaining comfort. Ceiling fans complement AC by enhancing perceived cooling through air movement, allowing setpoints to rise without sacrificing comfort.

From a sustainability perspective, consider lifecycle impacts. Manufacturing and end-of-life handling of refrigerants contribute to a unit’s footprint. Selecting equipment with lower global warming potential refrigerants and ensuring professional installation and service to prevent leaks are practical steps. Pairing AC with on-site solar can offset daytime cooling loads; even without batteries, midday generation often aligns with peak cooling demand. Filters also play a role: higher-efficiency media (for example, ePM1 or MERV 11–13 equivalents) can capture fine particulates, improving indoor air quality, though dense filters should be matched to blower capability to avoid excessive pressure drop.

To ground this in numbers, consider a 70 m² well-insulated apartment in a temperate climate. With prudent shading and an inverter split rated around SEER 7, seasonal cooling energy might land in the range of 150–300 kWh for a typical summer, depending on usage habits and local weather. At €0.30/kWh, that’s roughly €45–€90. Actual outcomes vary, but the pattern is clear: envelope measures plus efficient equipment plus thoughtful operation produce resilient comfort at reasonable cost.

Sizing, Acoustics, and Placement: Getting Comfort Right the First Time

System sizing influences everything—from energy use and noise to how your space feels on a muggy evening. A quick rule of thumb based solely on floor area can mislead because it ignores insulation, window orientation, occupancy, and internal gains from lighting and appliances. A more reliable approach considers heat gains explicitly: enumerate glazing area (especially west and south), shading quality, infiltration rates, and typical occupancy. Many professionals use room-by-room load calculations to determine sensible (dry) and latent (moisture) loads. The result guides capacity and also informs air distribution and dehumidification strategy.

Undersized units run near maximum output for long periods, which can be noisy and still fail to trim humidity. Oversized units cool a room quickly but may short-cycle, leaving the air cool yet clammy. Inverters mitigate this by modulating output, but capacity must still sit within a sensible band. As a rough starting point for a well-insulated 20 m² bedroom with moderate solar gain in a temperate climate, a 2.0–2.5 kW cooling unit is often appropriate; sunnier, top-floor rooms or spaces with large west-facing windows might warrant the next capacity step. Always adapt to your building realities.

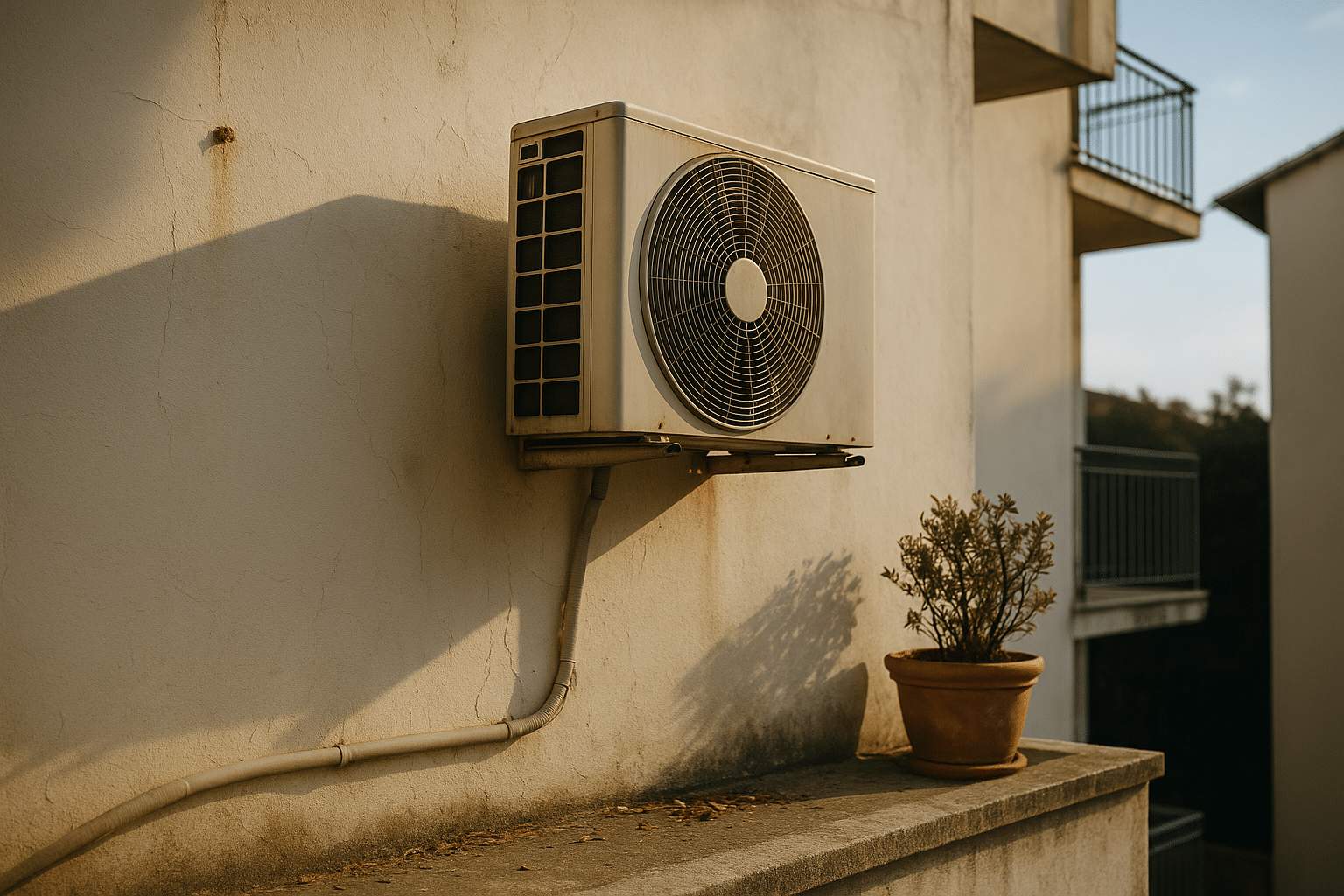

Noise is comfort’s quiet partner. Indoor units can operate in the low 20s dB(A) on “quiet” modes—soft enough to blend with a calm night. Typical everyday operation spans the mid-20s to low-30s dB(A). Outdoor units vary widely; careful placement and thoughtful mounting are essential. Practical tips include:

– Mount outdoor units on vibration-damped brackets or pads to reduce structure-borne noise.
– Avoid echo-prone corners and narrow light wells; reflected sound can amplify perceived loudness.
– Respect property lines and local noise ordinances; aim for setbacks and screening shrubs where feasible.
– Maintain clear airflow around the condenser (typically 30–60 cm from obstructions), allowing heat to dissipate efficiently.

Airflow and indoor air quality deserve equal attention. Keep return paths unobstructed; undercut doors or transfer grilles help air circulate back to the unit in multi-room layouts. In humid regions, prioritize modes and fan settings that allow adequate dehumidification; slower indoor fan speeds during cooling can extend coil contact time, aiding moisture removal. Filters should balance particulate capture with low resistance; check specifications and replace or clean at recommended intervals. Finally, consider condensate management: ensure the drain line slopes correctly, includes a trap where required, and is accessible for periodic flushing to prevent clogs and musty odors. Good placement and thoughtful details turn efficient hardware into quiet, dependable comfort.

Installation, Maintenance, and Total Cost of Ownership: Practical Steps and Budgeting

Good equipment underperforms when installed poorly. A professional install typically includes line-set routing with minimal bends, proper flaring or brazing, a deep vacuum to remove moisture and air, accurate refrigerant charge verified by manufacturer methods, and commissioning to confirm airflow, temperature split, and drain performance. Indoors, the unit should sit level, with clearance to open filters and clean coils; outdoors, the condenser needs stable, vibration-damped support and unobstructed airflow. Penetrations in walls or roofs should be sealed and weatherproofed. Thoughtful cable management and condensate routing might not be flashy, but they prevent leaks, stains, and service headaches down the line.

Maintenance is straightforward yet essential. Create a simple seasonal routine:

– Every 1–3 months in summer: clean or replace indoor filters; a light vacuum or rinse (if washable) keeps airflow strong.
– Twice a season: inspect the outdoor coil and gently remove debris; clear leaves and dust within a 50–100 cm perimeter.
– Annually: check condensate drains for algae or buildup; flush as needed. Inspect insulation on refrigerant lines for UV damage.
– Every 1–2 years: schedule a professional service to assess refrigerant charge, electrical connections, fan bearings, and controller updates.

Budgeting benefits from a lifecycle view. Upfront costs vary by region and complexity, but as a ballpark in many European markets: a quality single split, installed, might range from the low four figures to mid four figures (EUR). Multi-splits, ducted systems, or long line-set runs increase labor and materials. Operating costs hinge on local tariffs and usage; aligning run times with off-peak rates or on-site solar generation can trim bills. Filters and periodic service add modest ongoing costs; factor these in early to avoid surprises.

Some practical ways to stretch value without compromising comfort:

– Set realistic cooling targets (24–26°C for general living areas) and leverage ceiling fans to raise comfort at higher setpoints.
– Use shade: exterior awnings and deciduous trees reduce heat gain substantially, easing AC workload.
– Zoning discipline: cool only occupied rooms; close doors to contain treated air; use timers and presence-based controls when available.
– Keep heat out: avoid running ovens and large electronics during peak heat; consider LED lighting to reduce internal gains.

Finally, plan for the future. If you expect layout changes or additions, discuss line-set capacity and electrical provisions with your installer now. Selecting scalable controls and leaving space for an extra indoor unit can save significant time and cost later. With careful installation, routine maintenance, and mindful operation, a modern air conditioner can deliver reliable, quiet comfort for years while keeping energy use in check.

Conclusion: Choosing Responsibly for Lasting Comfort

For homeowners, tenants, and small business operators, the right air conditioner is an investment in daily well-being. Start with a clear picture of your space and usage habits, then select a system architecture that fits your constraints and future plans. Favor seasonal efficiency, careful sizing, and professional installation; they pay back in quieter operation, better dehumidification, and lower bills. Combine equipment upgrades with shade, envelope improvements, and smart controls to multiply the benefits. Comfort is not a luxury when delivered thoughtfully—it is a stable backdrop for work, rest, and health through the warmest months, achieved with measured energy use and predictable ownership costs. The cool you feel on a sweltering afternoon can be as gentle on your budget as it is on the planet when you choose and operate your system with intention.
